Church Roof Repair Project progress report #8

Monday 7 March was windy but dry and Oscar set about preparing the new bed with a better slope for the north gutters of the nave roof involving some hard work thinning the ends of the main beams.

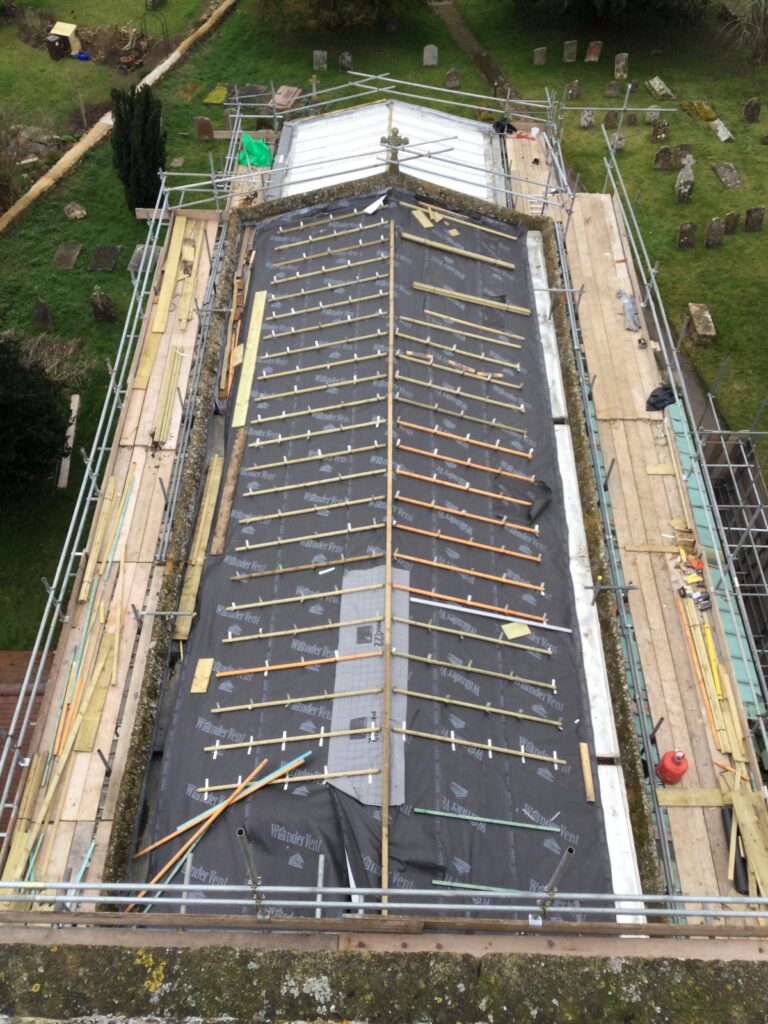

The roofs from the top of the tower on 5 March 2022.



The only part of the wall plates found to be rotten was this short piece found while preparing the nave new north gutter formers. A new piece was substituted for the rotten one.

On Tuesday Harry was reprogrammed  to point the masonry joints at the clock face ready for its return.  It duly arrived with Barry and Jamie from Gillett and Johnston.  The iron ring is 49 ½ inches across its outside diameter and weighs about 30kg. With human toil it was lifted up to the chancel roof scaffolding. Next up to the nave roof then onto the clock face scaffold with an additional audience of three in Church Hill witnessing the event.

The cast iron clock annulus back in place on 9 March as yet held by one screw, three more to go, with Jamie protected against the wind. By the end of the day the central disc and the hands were back in place.

We had wondered whether or not to replace the acrylic central disc but with the architect present it was decided that it was better if we did after all!  The hands were left set at 12 o’clock as the eighteenth century mechanical clock has not yet been set running, awaiting for some  glue to fully harden.  For a full view of the effect we shall have to wait for the scaffolding to be removed!

William, the architect, made a closer inspection of the capping stones on the nave parapet, many more of which are crumbling than we thought.  The stonemasons report that they should all be lifted, cleaned and refixed, and several replaced with new stone.  So we are expecting an inevitable rise in costs.

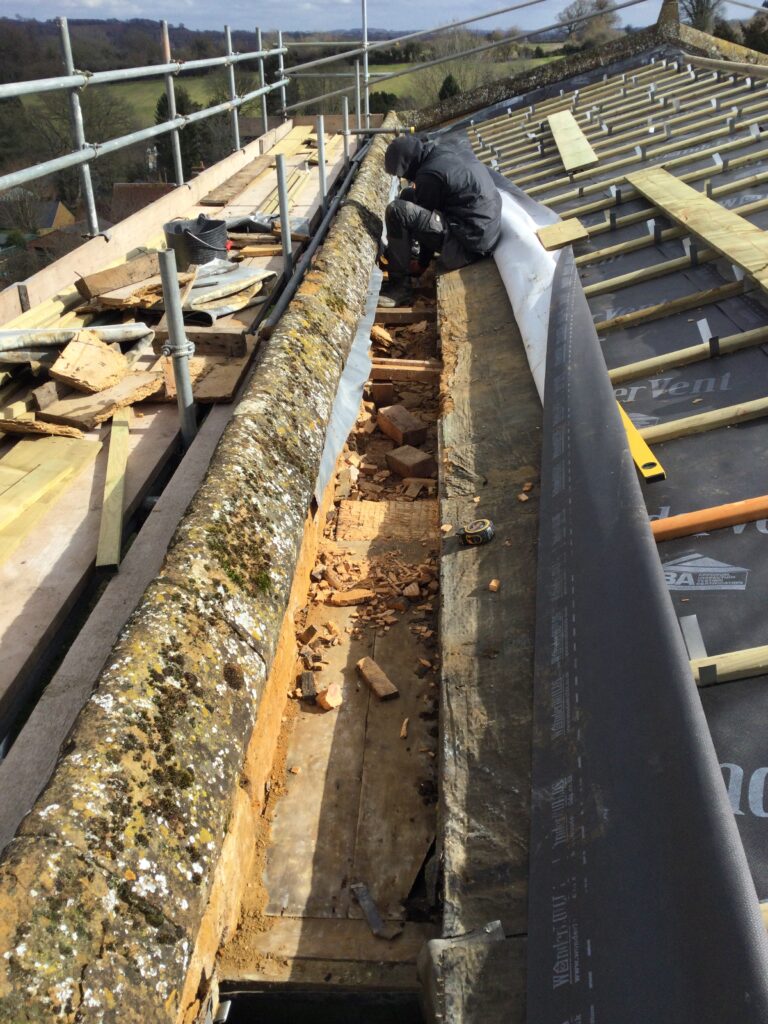

Oscar prepares the north gutter of the nave roof for its new steel lining.

On Friday, the completion of the north nave gutter lining was nearly completed with the last gutters already preformed inside the church ready for installation.

The steel lining installed in the north east gutter of the nave roof.

Also on Friday, I was interviewed on the top of the tower by Martin Heath for BBC Radio Northampton about the project and the funding from the Heritage Stimulus Fund.  The 8 minute recording is available on BBC Sounds at  https://www.bbc.co.uk/sounds/play/p0bqh6tg  starting at 3:10:46 for a month with a very short clip of his video at https://twitter.com/heathm50?lang=en-GB

On Saturday, Darren and his special bending machine returned.  A busy morning in the church saw 50 sheet metal ‘trays’ formed from the special Inox Uginox 0.5 mm thick stainless sheet steel coils.  Next week they will be fitted to the nave roof.

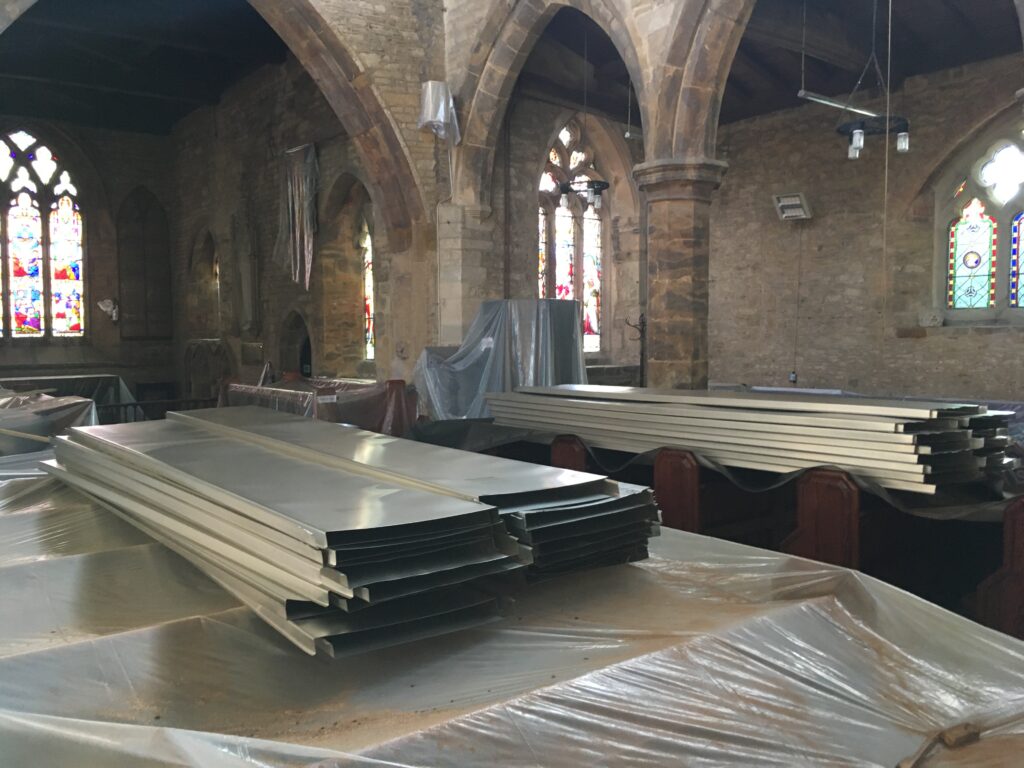

Nave roof covering ‘trays’ formed from a large coil of stainless steel sheet on Saturday and stacked up in the church.

GHP
